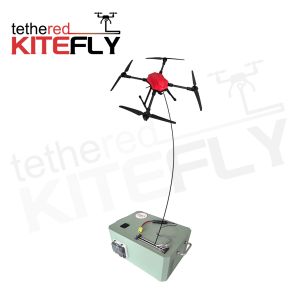

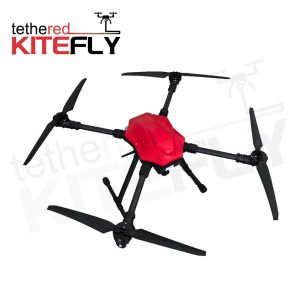

UAV Material: Carbon fiber + aerospace-grade aluminum alloy

Number of Rotors: 4 (quadcopter)

Wheelbase: 900 mm

Deployed Dimensions: 720 × 720 × 470 mm (L × W × H)

Folded Dimensions: 440 × 350 × 470 mm (L × W × H)

Empty Weight: ≤ 3 kg (battery excluded)

Maximum Payload: ≤ 5 kg

Maximum Take-off Weight: ≤ 11 kg

Safe Wind Speed: ≤ Level 6

Operating Temperature: –20 °C to 50 °C

Protection Rating: IP54

System Case – Main Body: 380 × 270 × 180 mm (L × W × H)

System Case – Overall (with handle & control panel): 410 × 300 × 185 mm (L × W × H)

Single Cable Length: 60 m

Cable Weight: 9.9 kg ± 0.1 kg

External Power Supply: AC 220 V

Maximum Cable-Retrieval Speed: ≥ 2 m/s

Operating Mode: Passive payout / Active retrieval

Power Output Voltage: DC 380–420 V

Power Output Max Power: 3 kW

Recommended On-board Power: ≤ 4 kW

Model: AF-L800 High-Voltage Light Board

Weight: 200 g

Dimensions: 190 × 44 × 22 mm (L × W × H)

Power: 150 W

Input Voltage: 380–420 VDC

Current: 3–4 A

Operation: Instant-on upon power-up

LED Type: COB

Luminous Flux: 100000 lm

Clamp Diameter: 20–40 mm

Founded in 2018, Airfly Tethered is a national high-tech enterprise specializing in the research, development, and manufacturing of tethered UAV power systems. As one of Jiangsu Province’s leading intelligent manufacturing companies, Airfly is dedicated to advancing tethered technologies that enable safe, efficient, and continuous drone operations.

Based in Nanjing, China, Airfly collaborates with domestic and international partners to provide high-quality, high-performance tethered modules and power stations for UAV applications worldwide.
Our flagship products include the A4, WF4, and FW6 airborne power modules (6kW, compatible with 750V ground stations), and the G4 and G7 ground tether power stations (7kW / 750V)—widely recognized as reliable, market-proven solutions.

Driven by the philosophy of “Technology Empowers, Innovation Leads,” Airfly partners with renowned universities such as Nanjing University, Southeast University, and NUIST, forming a strong R&D team with cutting-edge expertise. We not only deliver industry-leading standard products but also provide customized non-standard tethered solutions to meet clients’ specialized needs.

Airfly Tethered serves over 600 domestic and 80 international clients, with exports to the U.S., Europe, the Middle East, South Africa, and Southeast Asia. Our tethered systems play critical roles in power inspection, communications, monitoring, emergency response, firefighting, and security.

Looking ahead, Airfly will continue to expand the boundaries of tethered UAV applications, creating greater value for customers worldwide and powering the future of intelligent aerial operations.
